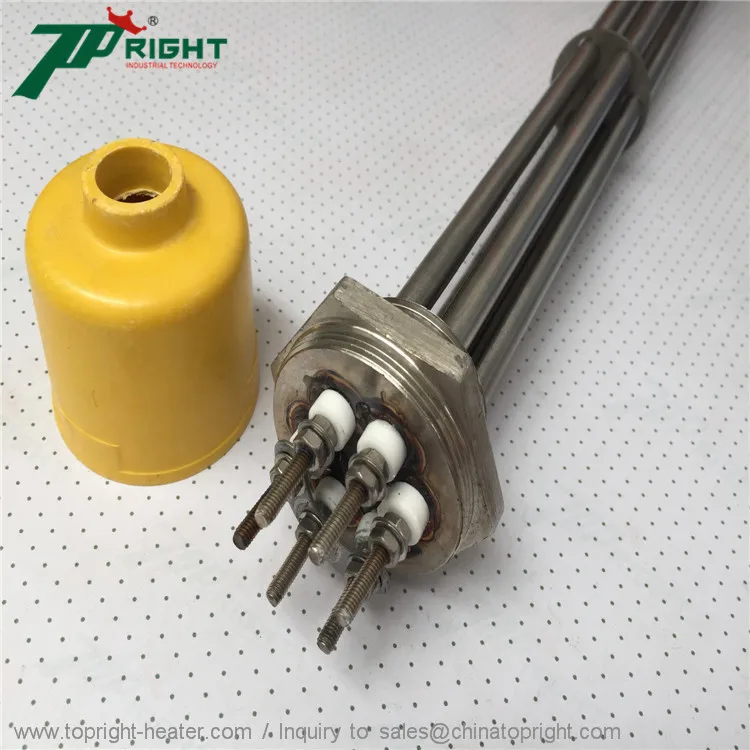

Factory low price CE Approved 3kw electric tubular flange heater with quick coupling immersion tubular heater

  • 5 - 99 Pieces
    $9.80
  • 100 - 999 Pieces
    $8.50
  • >=1000 Pieces
    $4.20
Model Number:
TR-TH2018050805G
Power:
1-3KW
Shipping:
Support Express · Sea freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 >500
Est. Time(days) 7 15 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Samples:
$12.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Construction works , Energy & Mining, industrial
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Air Heater
Power Source:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
Topright
Dimension(L*W*H):
Customized
Weight:
0.4
Voltage:
220-380v
Certification:
CE ROHS
Working Temperature Range:
-5 - 600 ℃
Key Selling Points:
Competitive Price
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
resistance wire
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Max length:
6000mm
Heating resistance wire:
Nickel chromium
Fin material:
s.steel & mild steel
Fin pitch:
3-10mm
Wattage Tolerance:
+5%- -10%
Tube dia:
6-20mm
Tube material:
SS304/316/321/Incoloy
Wattage:
2-3w/cm2
voltage:
220V 110V
Warranty:
8000 Hour
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week 1000pcs tubular heating rod can supply in one week
Packaging & Delivery
Packaging Details
Plastic bag + Carton for immersion heaters
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 >500
Est. Time(days) 7 15 To be negotiated
Product Description

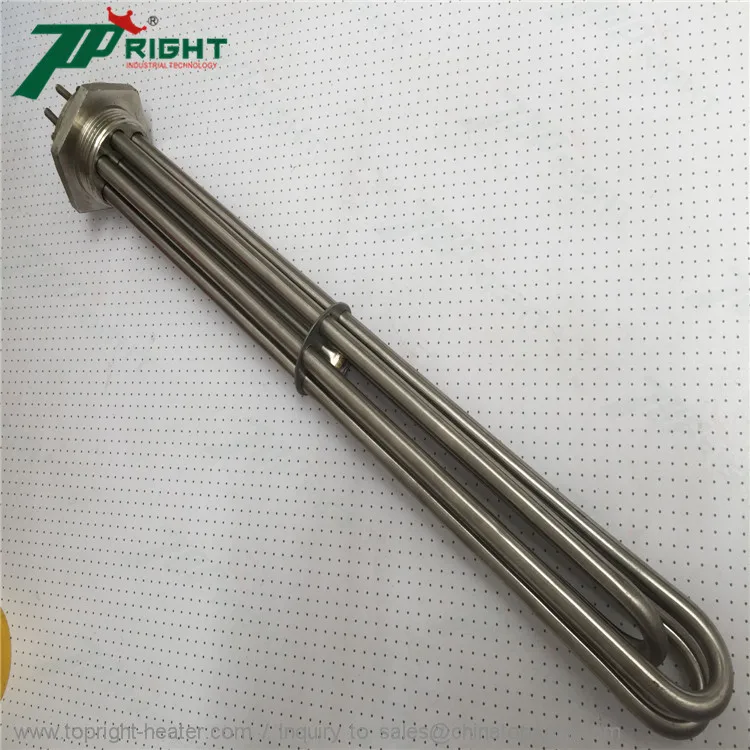

Tubular Heater Description

Topright Brand Tubular heating element are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time. Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications. Screw in Tubular heating element are standardised for use in liquids like water.

Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available .

HI-POT Test
1500V/S min cold condition
Insulation resistance
20M Ω min
Leakage current
0.75ma max
Power tolerance
+5%,-10%
Voltage
110V-440V
Diameter range
1mm to 40mm
Heating resistance wire
0Cr25Al5,Cr20Ni80 or as custom's requirement
Air tubular heater wattage
≥ 2w-4w/cm2
Water tubular heater wattage
≥ 6w-10w/cm2
Dies and fin tubular heater
≥ 8W-12w/cm2
Detailed Images
Related Products
Applications

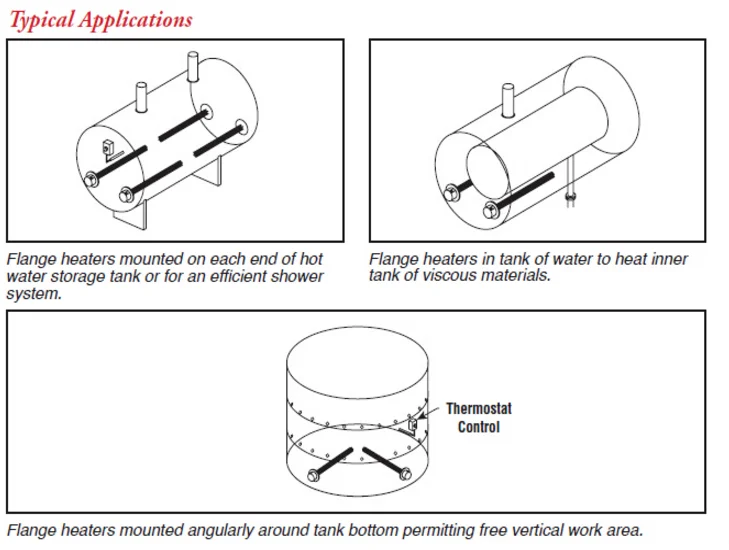

Flange heater application

Liquid Immersion
Plastic Molds
Dies
Labeling
Medical Equipment
Platens
Packaging Equipment
Hot Stamping
Sealing
Injection Molding

1.Available in a broad variety of sheaths, diameters, and ratings;
2.Supplied with electrically insulated sheath;
3.Provide superior internal electrical insulation and heat conductivity;
4.Easy to install;
5.Configurable to virtually any shape;
6.Compact size;
7.Precise and easy control of heat output;
8.Durable;
9.Easy to maintain;
10.Easy to replace thus eliminating long shut-down periods;

Recommend Products
Production Flows
Certifications
Our Company

Topright Technology Culture

Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.

How does your factory do regarding quality control?

"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers. Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
